Windows 10’s Security Reboot, Part III: FIDO and Beyond

Data Security

FIDO’s Universal Two Factor (U2F) is intended to make it easy for companies to add a strong second factor to their existing crypto infrastructure. Most of us are probably not ready to leap ahead to the password-less Universal Authentication Factor (UAF), which I touched on in the previous post in this series. So U2F is a comfortable half-way point that still leverages FIDO’s strong crypto technology but allows employees to continue with their more familiar password entry habits.

U2F is an ambitious initiative to raise the overall authentication bar for everyone. Rather than just another proprietary approach, U2F is instead an open-standard with its own ecosystem supported by browser vendors and device makers.

Get the Free Pen Testing Active Directory Environments EBook

“This really opened my eyes to AD security in a way defensive work never did.”

It has a major advantage over current schemes in that it addresses a serious flaw with current implementations of two-factor authentication (TFA).

What’s the issue with vanilla TFA?

It’s actually vulnerable to straightforward man-in-the middle attacks. Typically an attack would be initiated through a phish mail.

Phishing for Factors

Let’s quickly review TFA. In addition to asking for the password–what the user knows–it also requires something they have: say, a cell phone. For example, when logging into a TFA-based web site, the user is asked to enter an additional one-time password (OTP) that’s then sent as an SMS. The OTP is often a short numeric string with a limited lifetime.

A clever hacker simply has to set up a fake web site that looks like the target—for argument’s sake, an overnight delivery service. A phish mail could be sent to employees in a large company asking them to, say, verify a delivered package by clicking on a link to the phantom site.

In standard man-in-the-middle fashion, the hackers now simply forward the password to the real site, triggering the OTP. When the user enters the OTP, it too is forwarded to the real site, giving complete access to the hacker.

Mission accomplished.

U2F Makes it Hard

U2F does it differently. It takes full advantage of the public key crypto that I talked about last time. Like UAF, it uses the public-private key pairs, which are initially registered for the device on which the second factor is based.

Bottom line: U2F provides a convenient way for companies to boost identity verification without having to add fancy biometric techniques.

Vendors have already introduced FIDO compliant dongles—essentially a USB drive on which has the private key is stored. Just around the corner, smart phone vendors will soon be able to support the FIDO standard through Near Field Communications (NFC) technologies.

Here’s how it all auth u2f

When users log on to a U2F-supported website or corporate portal, in addition to entering their password they’ll be asked to insert their FIDO dongle into their laptop or device. When smart phones start supporting FIDO, users will place or swipe their iPhone and Androids near the laptop’s NFC reader.

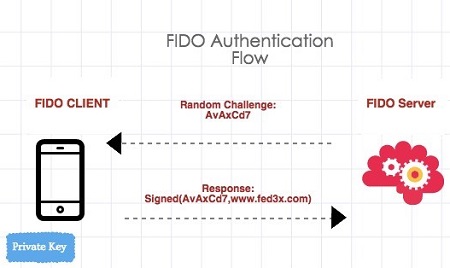

Anyway, the dongle is then asked to sign a random string that’s concatenated—and this is crucial—with the URL of the web site asking for the information (see the diagram).

When this signed credential is sent back to the website, it is decrypted. If the random string matches, then the user has proven himself. And if the decrypted URL matches what the user was expecting—i.e., the address of the website verifying the second factor—then the website is authenticated as well.

Not Perfect, But …

Sure, U2F requires support from Chrome, Firefox, and other vendors to pass URLs to the dongle. And no, it’s not a foolproof solution, but you can see how it eliminates man-in-the-middle attacks.

If a fake site passes the credential to the authenticating server of the real site, it would be rejected! The fake site’s phishy URL (, when decrypted, couldn’t possibly match the URL of the real site (

This is a very good solution!

While there are some potential weak points, U2F should close the door to low-skilled hacks and could eliminate many, many breaches.

No doubt hackers are working on malware that can get around U2F’s strong security—possibly some clever keylogger that embeds itself on the user’s device. It also wouldn’t surprise me if some presentations at this year’s Black Hat conference start suggesting possible hacks. We’ll see.

Nothing in Windows 10 Is Nailed Down

While I was hoping to end this post with a discussion of another intriguing Windows 10 security improvement, a more serious effort at addressing data loss prevention (DLP), I’ll have to punt. There’s even less information available on this than on the authentication improvements I’ve been discussing.

Of course, none of us know how any of this will be implemented because Windows 10 is about a year away from a general release and features are, as Microsoft has noted, “subject to change.”

While I am cautiously optimistic that some of the worst abuses of Windows authentication hacking will soon end, the realist in me says new hacks are in the works.

Andy Green

Andy Green

Andy blogs about data privacy and security regulations. He also loves writing about malware threats and what it means for IT security.
